Tuesday, August 30, 2011

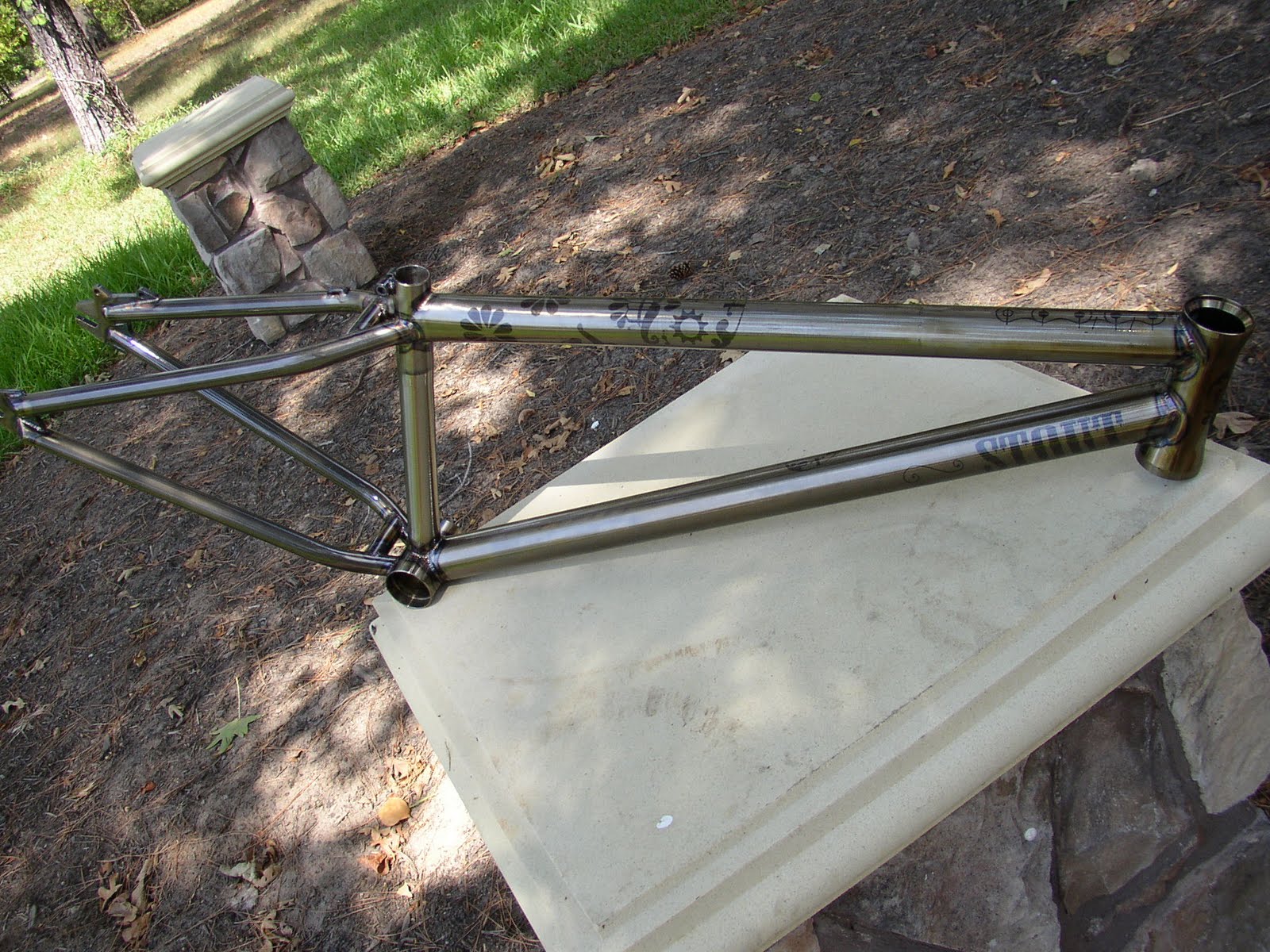

Chris' frame awaiting removable straight pull brake mounts.

Thursday, August 25, 2011

Dia De Los Lanclos

74.5 HA, 77 SA, (based on 425mm fork) 15" CS, -10mm BB height

Wednesday, August 17, 2011

some fun on the full suspension. I will try an 83mm BB on the next version to accomodate a wider main pivot. This current one has the bearings set at about 68mm, the next will have ~76mm width. Wider = stiffer.


Monday, August 15, 2011

21.75 TT, 73 SA, 69.5 HA, 14.5 CS, Euro BB at -10mm with 485mm ATC fork

Marque's frame is powdercoated now. Unfortunately the trans sparkle blue is a bit more opaque and the graphics underneath aren't as apparent as I had hoped. That's what stickers are for I guess. I put a little trans red bolt in the seat binder and the color scheme reminds me of the old Schwinn homegrown theme from the 90s.

Sunday, August 14, 2011

big secret BBQ in the woods... some Stouts in attendance
 AJs trails 20
 Brian's trails 26
 Jason's trails 20

Andrew almost getting hooked in a turndown

Friday, August 12, 2011

Some (patina-ed) bike tattoos to be buried under a sea of sparkle trans blue

Thursday, August 11, 2011

Got a new ROCO TST air shock for the fully. I'm liking the stiction that an air shock has. Cut out much of the bobbing from the pedal stroke... and its half the weight of the coil.

Saturday, August 6, 2011

Based on 420 ATCh
HA: 70
SA: 74
 Mid BB: +10mm
ST length: 11"
CS: 14.5"
Brakeless 135 by 10mm rear

Tim's is 100% welded. Powdercoat colors should arrive later this week. They would not ship them right before the weekend due to the heat. Apparently the powder can cure in a hot vehicle... I will have Marque's frame ready for finish by Wednesday.

Thursday, August 4, 2011

 Tim's street 26" is halfway there... next up is Marque's street 26" as well.
Got some street riding in on the fully SS. Changed my whole perspective on shit.
